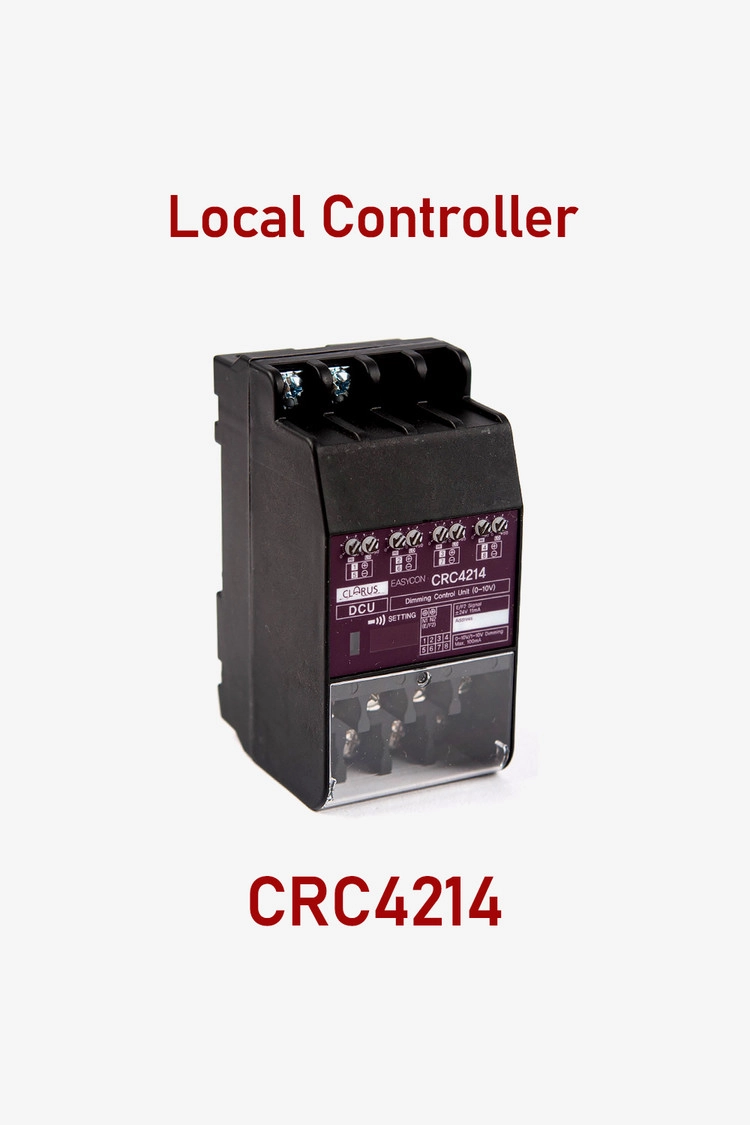

CRC4214_Dimming Control Unit(DCU)
Parcel · Default Free
Free shipping over $35.60
Country
/Region
Korea, Republic of
CRC4214
| Input signal voltage | Non-polarized ±24V(E/F2-BUS) |
| Signal current consumption | 11mA |
| Number of output channels | 4channels |
| Output dimming signal voltage | 0-10Vdc(Pulling Down Type) X 4CH |
| 0–10 V dimming signal current | Maximum 100 mA per channel (+, −), 2-wire configuration |
| Dimming signal wiring distance | Up to 100 m (1.2 mm² or AWG 16 or higher) |
| Address configuration | Wireless address setting device (CRC6400) |
CRC4214
| Input signal voltage | Non-polarized ±24V(E/F2-BUS) |
| Signal current consumption | 11mA |
| Number of output channels | 4channels |
| Output dimming signal voltage | 0-10Vdc(Pulling Down Type) X 4CH |
| 0–10 V dimming signal current | Maximum 100 mA per channel (+, −), 2-wire configuration |
| Dimming signal wiring distance | Up to 100 m (1.2 mm² or AWG 16 or higher) |
| Address configuration | Wireless address setting device (CRC6400) |
